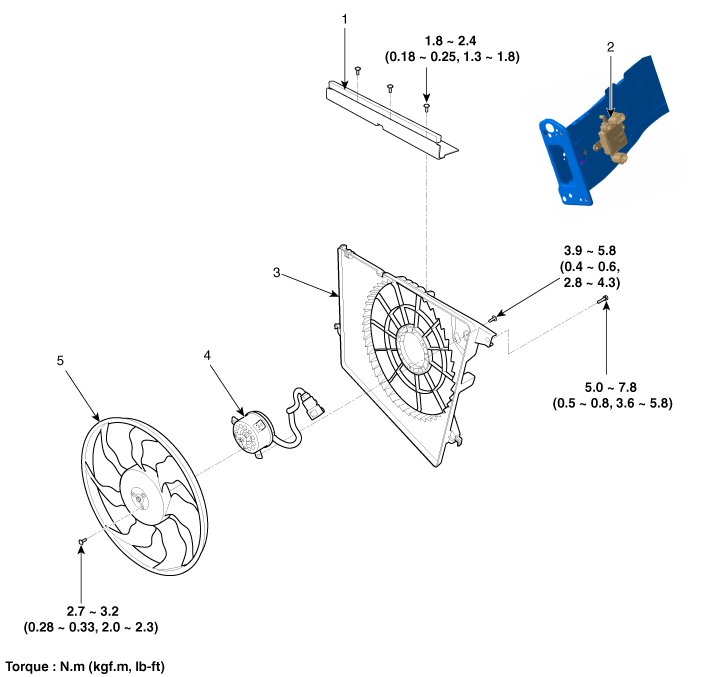

1. Upper air guard
2. Cooling fan control module
3. Cooling fan shroud
4. Fan motor
5. Cooling fan

Radiator Inspection
Radiator Cap Testing 1. Remove the radiator cap, wet its seal with engine coolant, and then install it on a pressure tester. 2. Ap ...

Cooling Fan Description
Control the cooling motor voltage in according to the duty(300Hz) of ECM. [ECU → PWM Input Signal(SI : 300Hz)] Signal Input Duty (%) Motor Voltage (V) 10 ...
