Kia Sorento: Components - Blind Spot Detection System - Body Electrical System - Kia Sorento XM 2011-2024 Service ManualKia Sorento: Components

Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Body Electrical System / Blind Spot Detection System / Components

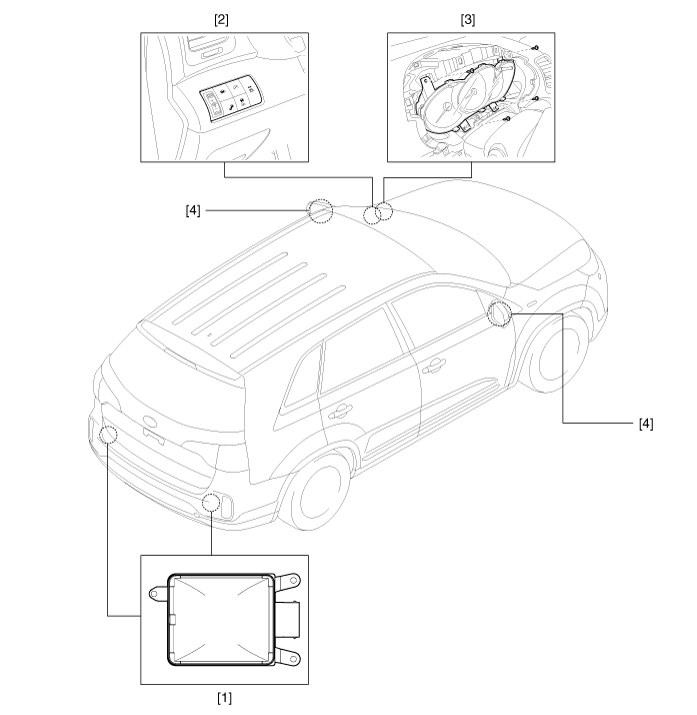

1. Blind Spot Detection (BSD) Unit
2. BSD switch
3. Speaker (Built in the cluster)
4. BSD warning lamp (Built in the outside mirror)

Specifications
Items Specification Rated voltage DC 12V Operating voltage 9V ~ 16V Operating speed 30㎞/h ~ 250㎞/h ...

Description
BSD is a system that uses two magnetic wave radar sensors attached on the rear bumper to measure the distance from the following vehicles and provides the sensing and (visual and auditory) al ...
