Kia Sorento: Component Location (1) - Smart key System - Body Electrical System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Component Location (1)

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Body Electrical System / Smart key System / Component Location (1)

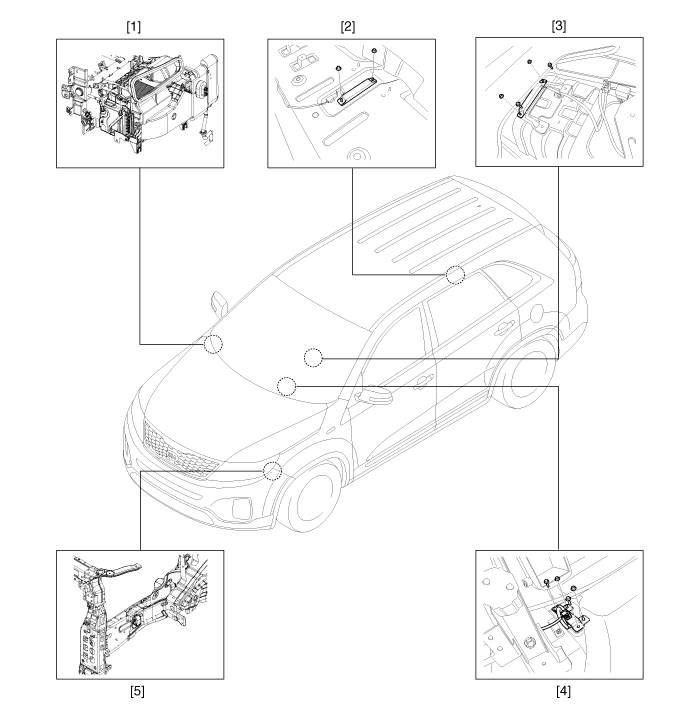

1. Smart key unit
2. Interior antenna 3
3. Interior antenna 2
4. Interior antenna 1
5. Buzzer

Specifications
Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC 9 ~ 16V Operating temperature -22°F ~ 167°F ( ...

Component Location (2)
1. Door outside handle button 2. Door outside handle 3. Bumper antenna 4. Tailgate switch ...
