Kia Sorento: Component Location

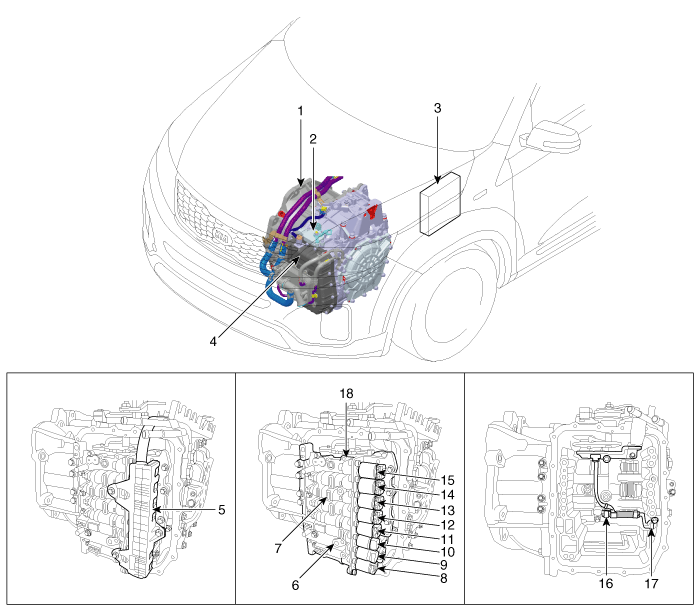

| 1. Automatic transaxle 2. Inhibitor switch 3. Transaxle Control Module (TCM) 4. Valve body cover 5. Solenoid valve connect 6. Oil temperature sensor 7. Valve body assembly 8. Line Pressure Control Solenoid Valve 9. SS-A Solenoid Valve(ON/OFF) |
10. SS-B Solenoid Valve(ON/OFF) 11. Overdrive Clutch Control Solenoid Valve(OD/C) 12. Underdrive Brake Control Solenoid Valve(UD/B) 13. 26 Brake Control Solenoid Valve(26/B) 14. 35R Clutch Control Solenoid Valve(35R/C) 15. Torque Converter Control Solenoid Valve(T/CON) 16. Output speed sensor 17. Input speed sensor 18. Valve body assembly |

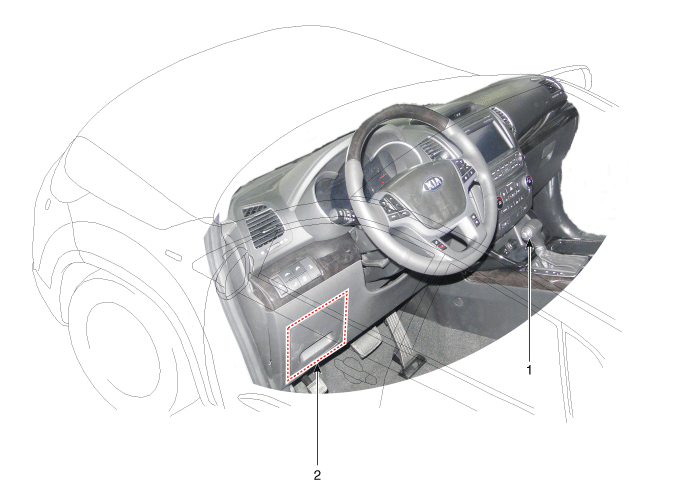

| 1. Shift lever 2. Data Link Connector (DLC) |
