[Engine Room]

1. Receiver-drier
2. Condenser
3. Ambient temperature Sensor
4. Compressor
5. Discharge Hose
6. Suction & Liquid Tube Assembly
7. Service Port (Low Pressure)
8. Service Port (High Pressure)
9. A/C Pressure Transducer
10. Expansion Valve

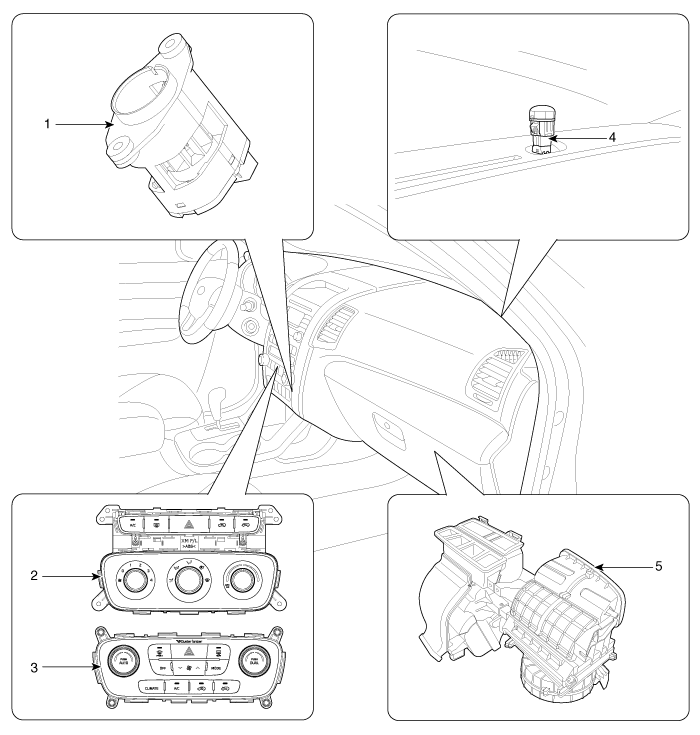

[Interior]

1. In-car sensor
2. Heater & A/C Control Unit (Manual)
3. Heater & A/C Control Unit (DATC)
4. Photo Sensor
5. Heater & Blower Unit

Refrigerant Recovery
Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system. ...

Compressor Oil Specification
1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. ...
