Kia Sorento: Circuit Diagram - Accelerator Position Sensor (APS) - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Circuit Diagram

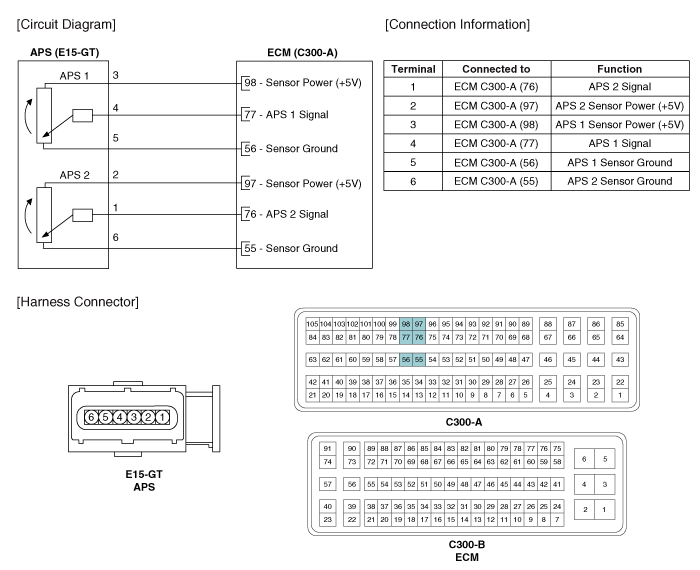

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Accelerator Position Sensor (APS) / Circuit Diagram

Specification
Accelerator Position Output Voltage (V) APS1 APS2 C.T 0.7 ~ 0.8 0.275 ~ 0.475 W.O.T 3.8 ~ 4.4 1.75 ~ 2.35 ...

Inspection
1. Connect the GDS on the Data Link Connector (DLC). 2. Turn the ignition switch ON. 3. Measure the output volt ...
