Kia Sorento: AVN Head Unit Components
Second Generation XM (2011-2025) / Kia Sorento XM 2011-2025 Service Manual / Body Electrical System / AVN System / AVN Head Unit Components

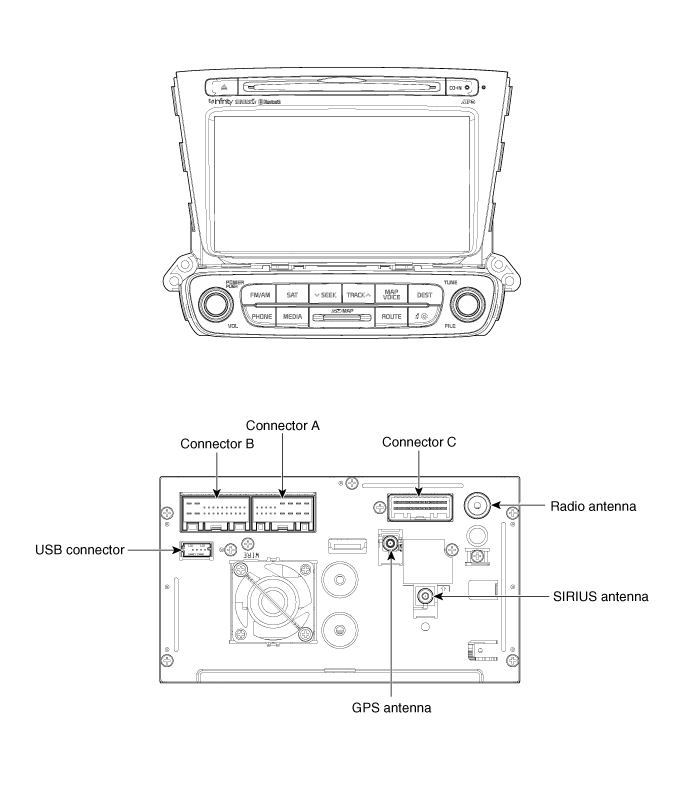

| AVN (A/V & Navigation) Head Unit Connector |

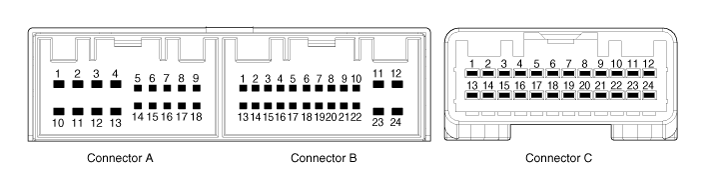

Connector Pin Information
| No. |
Connector A |
Connector B |
Connector C |
| 1 |
- |
MM CAN High |
- |
| 2 |
Parking V VIDEO |
Ground (Non TMU) / - (TMU) |
- |
| 3 |
Parking V GND |
Parking (MT) |
- |
| 4 |
Rear camera shield ground |
Steering wheel remocon |
- |
| 5 |
SPDIF ground |
- |
- |
| 6 |
SPDIF (+) |
- |
- |
| 7 |
ALT L |
- |
- |
| 8 |
Illumination (+) |
AUX right input |
- |
| 9 |
R position |
AUX ground |
- |
| 10 |
- |
MIC (+) |
Fuel indicator |
| 11 |
Rear camera power |
ACC (+) |
Door open |
| 12 |
Navigation voice (-) |
Battery (+) |
- |
| 13 |
Navigation voice (+) |
MM CAN Low |
- |
| 14 |
- |
Auto light |
- |
| 15 |
SPDIF (-) |
P position (AT) |
- |
| 16 |
Door key unlock |
Vehicle speed |
- |
| 17 |
Illumination (-) |
Key ground |
- |
| 18 |
Antenna remocon power |
- |
- |
| 19 |
|
- |
- |
| 20 |
AUX detect |
- |
|
| 21 |
AUX left input |
- |
|
| 22 |
MIC (-) |
- |
|
| 23 |
Power ground |
Ground |
|
| 24 |
Power ground |
- |
Description
Limitations Of The Navigation system
GPS Signal Reception State
As the GPS satellite frequency is received/transmitted in straight lines,
reception may not work if hiding devices are pla ...
AVN Head Unit Removal
•
Take care not to scratch the center fascia panel and related
parts.
...
See also:
Specification
Item
Specification
Coil Resistance (Ω)
19.9 ~ 22.9 [20°C(68°F)
...
Smart Key
Smart Key Code Saving
1.
Connect the DLC cable of GDS to the data link connector (16 pins)
in driver side crash pad lower panel, turn the power on GDS.
...
Installation
•
Install the component with the specified torques.
•
...
