Kia Sorento: Special Service Tools - Automatic Transaxle System - Kia Sorento XM 2011-2026 Service ManualKia Sorento: Special Service Tools

Second Generation XM (2011-2026) / Kia Sorento XM 2011-2026 Service Manual / Automatic Transaxle System / Special Service Tools

Tools
(Number and name)
 Illustration
 Use
09200-3N000
Engine support fixture(Beam)

Removal and installation of the transaxle.
Except lower supporter, use beam only with new engine support fixture supporter(SST No.:09200-2S000)
09200-2S000
Supporter

Removal and installation of the transaxle.
Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000)
09200-2W000
Adapter

Removal and installation of the transaxle.
Use this beam (SST No. : 09200-38001/3N000) with the adapter (SST No. : 09200-2W000)
09453-3L240
Oil seal installer(2WD)

Installation of transaxle case oil seal.
(In case of 2WD vehicle use this tool to both sides when installing oil seal, and 4WD vehicle should use transaxle case side only.)
[Using with bar (SST No.:09231-H1100)]
09453-2W100
Oil seal installer(4WD)

Installation of transaxle case oil seal.
(In case of 4WD vehicle use this tool to transaxle housing side when installing oil seal.)
[Using with bar (SST No.:09231-H1100)]
09231-H1100
Bar

Installation of transaxle case oil seal.
[Using with oil seal installer (SST No.:09453-3L241, 09453-2W100)]
09480-A3800
Inhibitor switch guide pin

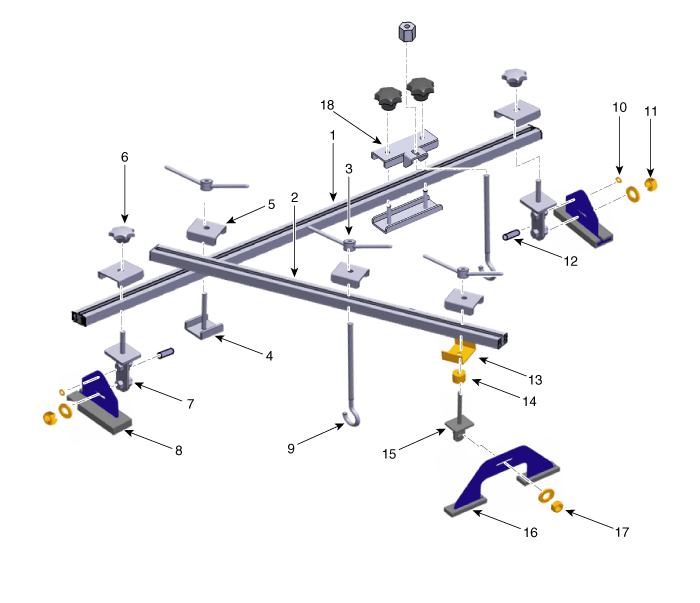

※ Engine support fixture special tool assembly drawing

1. 09200-3N000(Main bar)
2. 09200-3N000(Sub bar)
3. 09200-3N000(Handle)
4. 09200-3N000(Stopper)
5. 09200-3N000(Stopper)
6. 09200-3N000(Knobe)
7. 09200-3N000(Adapter)
8. 09200-2S000(Supporter)
9. 09200-3N000(Hanger)
 10. 09200-3N000(Clip)
11. 09200-3N000(Nut)
12. 09200-3N000(Pin)
13. 09200-2S000(Stopper)
14. 09200-2S000(Spacer)
15. 09200-2S000(Adapter)
16. 09200-2S000(Nut)
17. 09200-2S000(Supporter)
18. 09200-2W000(Adapter)
