Kia Sorento: Power sunshade
|
|
The integrated power sunshade in your Kia Sorento allows you to easily block direct sunlight, reduce heat buildup, and maintain a comfortable cabin temperature without completely opening the glass panel.

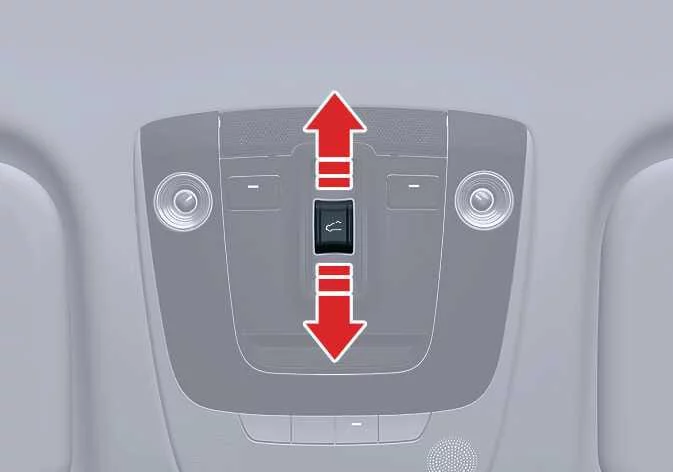

Push the sunroof switch backward to the first detent position to open the shade. The power sunshade will smoothly slide open, allowing ambient light into the passenger compartment.

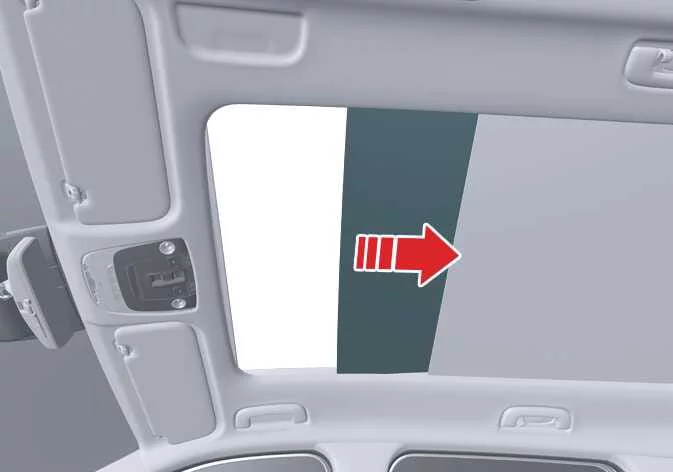

Push the sunroof switch forward to the first detent position to close the shade. If the sunroof glass panel is already open when you engage this switch, the system will automatically close the glass before fully extending the sunshade curtain.
To halt the power sunshade at any intermediate position along its track, simply push or pull the sunroof switch briefly in any direction during movement.
NOTE
Never attempt to force, push, or pull the Kia Sorento power sunshade manually by hand. Manual pressure can derail the guide mechanism, damage the drive cables, or cause severe mechanical malfunction.
Minor surface wrinkles or subtle folds may naturally form on the fabric material over time due to climate changes and repeated retracting. This is a normal characteristic of the durable interior textiles used.
