Kia Sorento: Opening the fuel filler door
|
|
TIP
The fuel filler door automatically unlocks whenever the driver's door is unlocked.

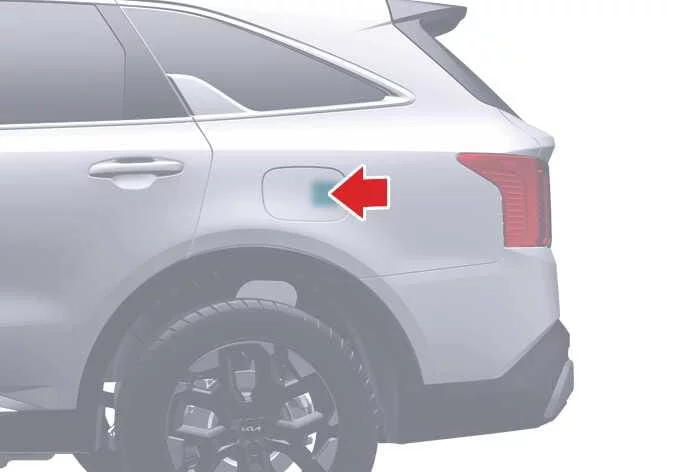

To unlock the fuel filler door on your Kia Sorento, perform any of the following actions:
Press the unlock button on your smart key fob.
Press the central door unlock button located on the armrest control panel of the driver's door.
Pull the driver's interior door handle outward.
The fuel filler door locks automatically whenever all passenger doors are locked.
To lock the fuel filler door:
Press the lock button on your smart key fob.
Press the central door lock button on the armrest trim of the driver's door.
For added safety while driving, all passenger doors and the fuel filler door will automatically lock once the vehicle speed exceeds 9.3 mph (15 km/h).
NOTE
Before refueling, always verify the correct fuel specification required for your specific vehicle configuration.
Introducing incorrect fuel, such as placing diesel or high-concentration ethanol into a gasoline engine (or vice versa), will damage the fuel pump, fuel injectors, and line components, leading to major mechanical damage.
If the fuel filler door fails to unlatch due to an electrical failure or central locking malfunction, contact an authorized Kia dealer for professional assistance.
TIP
If ice formation prevents the fuel filler door from opening during cold weather, tap gently around the door perimeter or push on it lightly to break the ice seal. Avoid using prying tools, screwdrivers, or rigid levers, as these will scratch the body paint and dent the metal panel. If necessary, apply an approved automotive deicer fluid around the edges (never use engine radiator antifreeze) or move the vehicle into a warm space to let the ice thaw naturally.
