Kia Sorento: ESC Control Module Components - ESC(Electronic Stability Control) System - Brake System - Kia Sorento XM 2011-2022 Service ManualKia Sorento: ESC Control Module Components

Second Generation XM (2011-2022) / Kia Sorento XM 2011-2022 Service Manual / Brake System / ESC(Electronic Stability Control) System / ESC Control Module Components

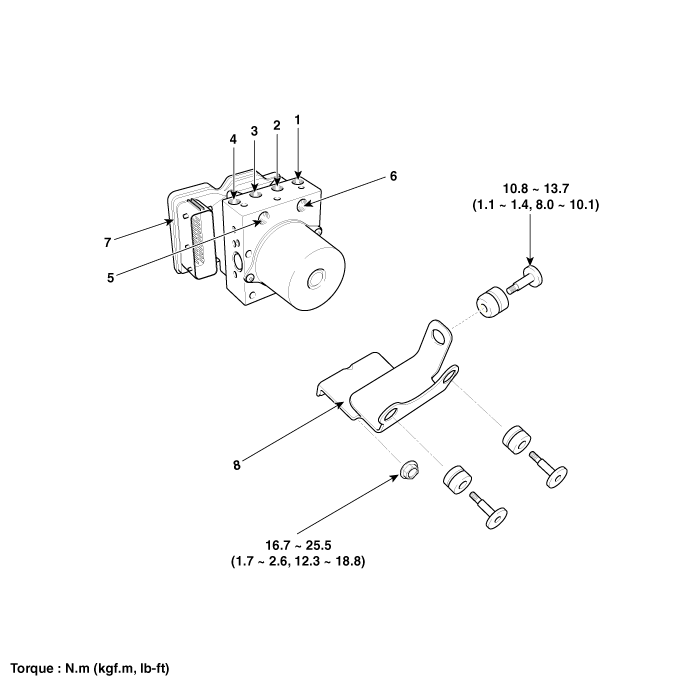

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2
6. MC1
7. ESC control module (HECU)
8. Bracket

EBD (Electronic Brake-force Distribution)
The EBD system (Electronic Brake force Distribution) as a sub-system of the ABS system is to control the maximum braking effectiveness by the rear wheels. It further utilizes the efficiency ...

ESC Control Module Removal
1. Turn the ignition switch OFF. 2. Remove the surge tank. [G3.3 GDI] (Refer to Engine Mechanical System - "Surge Tank") ...
