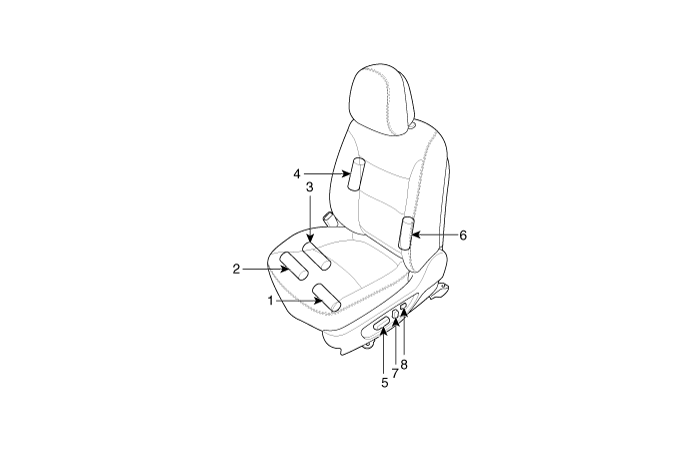

1. Slide motor
2. Front height motor
3. Rear height motor
4. Lumber support motor

5. Power seat switch
6. Reclining motor
7. Reclining switch
8. Lumber support switch

Seat Electrical

...

Power Seat Motor Inspection

Power Seat Motor 1. Disconnect the connectors for each motor. (Refer to Body - "Front seat") 2. With the b ...
