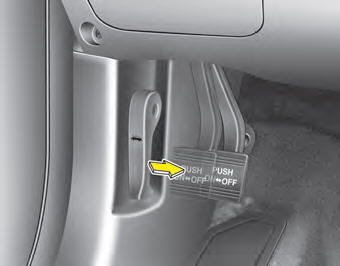

Type A
Check whether the stroke is within specification when the parking brake pedal is depressed with 66 lb, 294 N (30 kg) of force. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, have the parking brake adjusted by an authorized Kia dealer.
Stroke : 8~9 notch

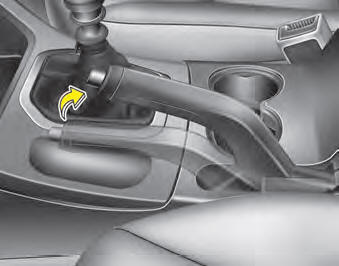

Type B
Check the stroke of the parking brake by counting the number of “clicks’’ heard while fully applying it from the released position. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, have the parking brake adjusted by an authorized Kia dealer.
Stroke : 5~6 “clicks’’ at a force of 44 lbs, 196 N (20 kg).
Front Wheel Transfer Assembly Removal
It is not recommended to overhaul the transfer assembly because
a special three-dimensional measuring instrument is requ ...
Cooling Fan Circuit Diagram
...
Automatic climate control system (If equipped)
1. A/C display
2. Driver's temperature control knob
3. AUTO (automatic control) button
4. Front blower OFF button
5. Front fan speed control switch
6. Mode selection button
7. Dual tempera ...
