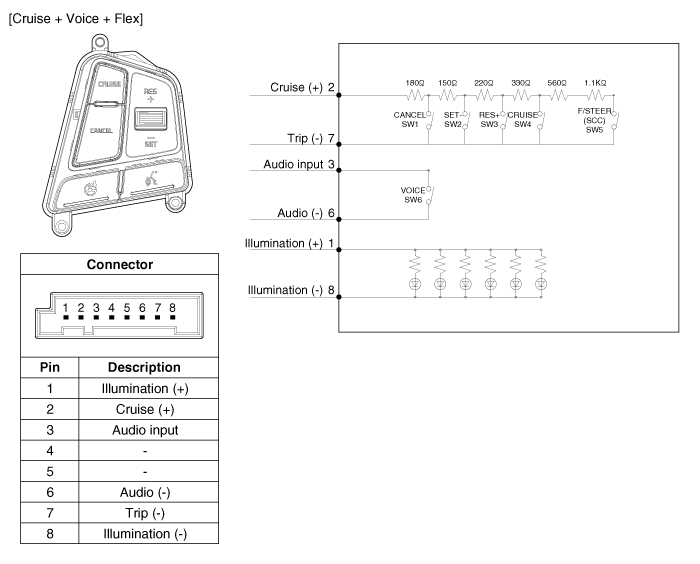

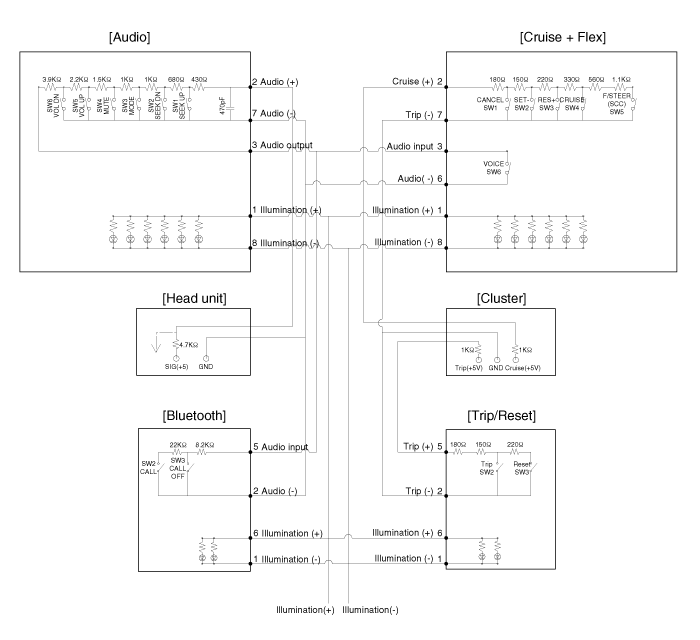

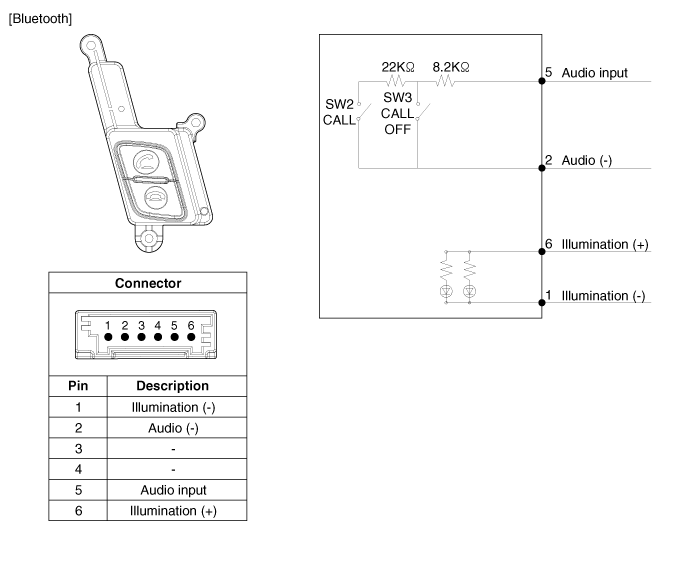

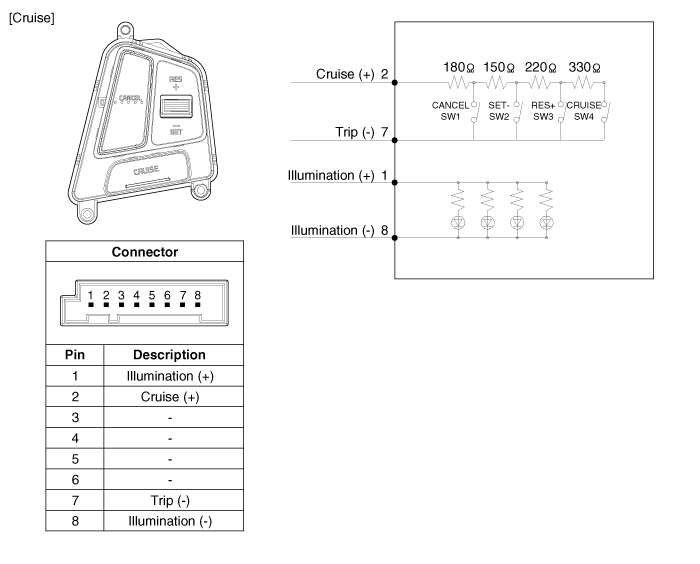

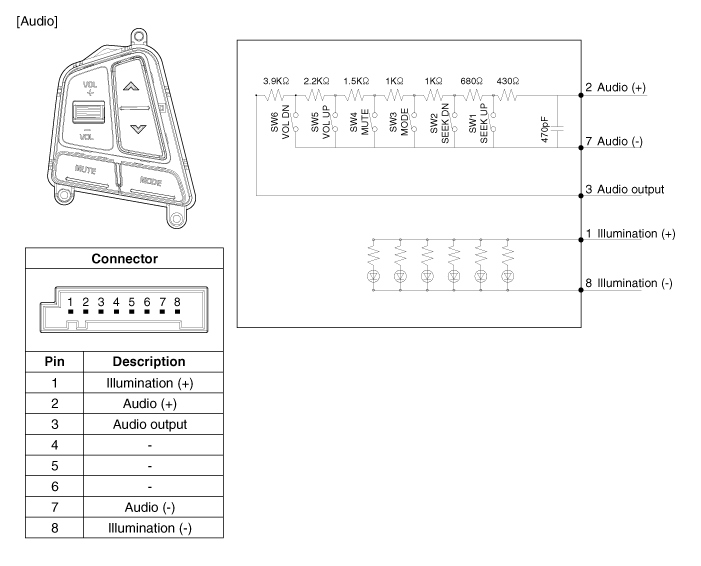

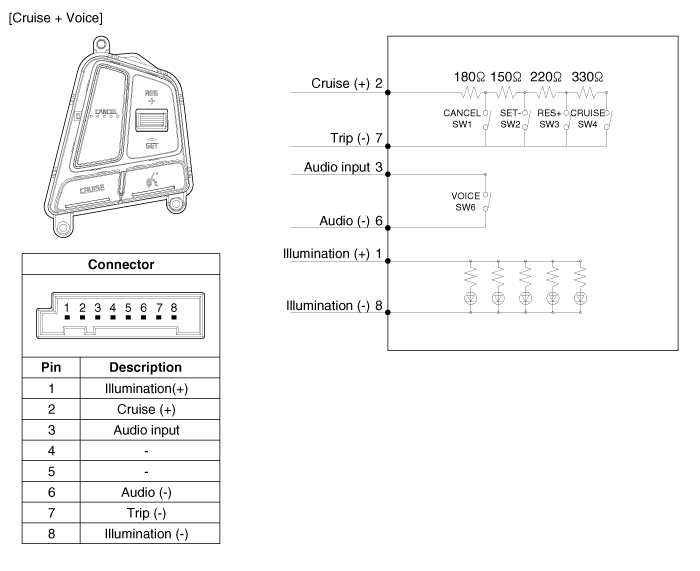

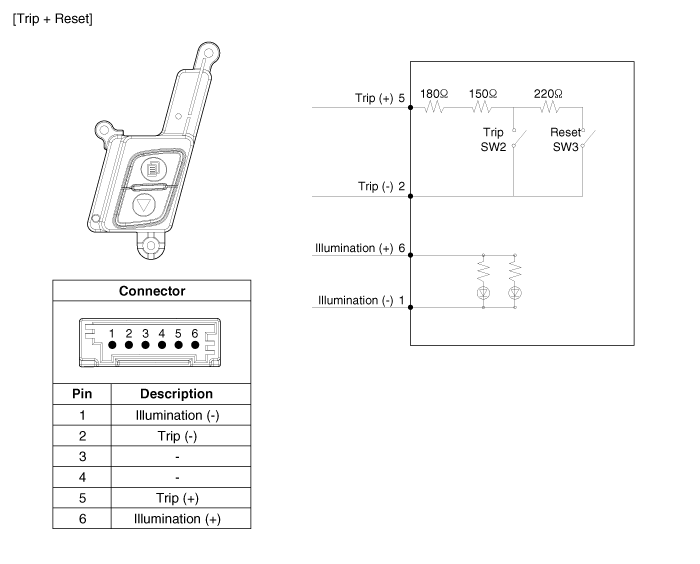

Kia Sorento: Audio Remote Control Circuit Diagram - Audio - Body Electrical System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Audio Remote Control Circuit Diagram

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Body Electrical System / Audio / Audio Remote Control Circuit Diagram

Audio Remote Control Components
...

Audio Remote Control Inspection
1. Check for resistance between No.2 and No.7 terminals in each switch position. [Audio System] Switch Connector terminal ...
