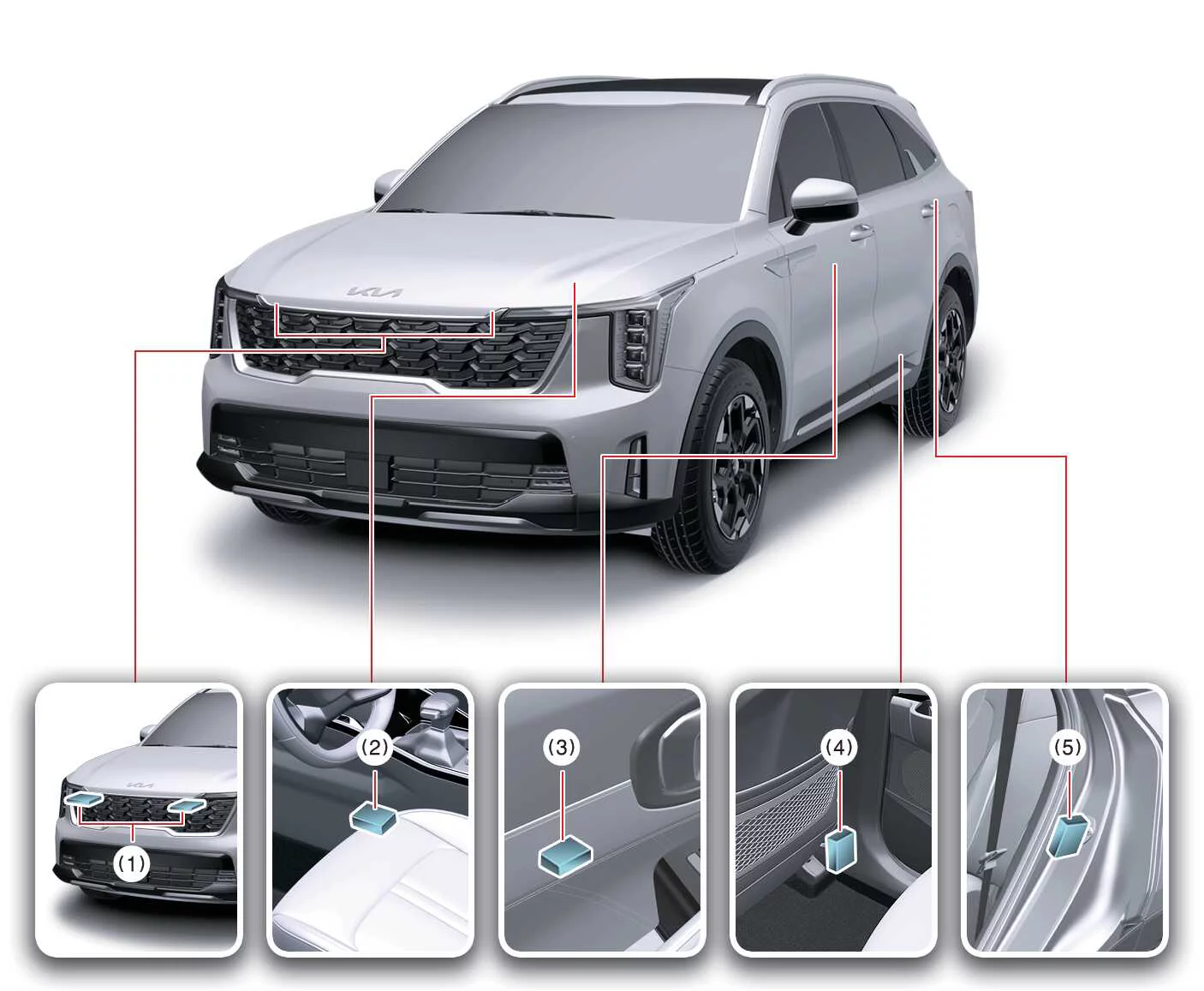

The actual shape, mounting angle, and exact physical positioning of individual collision sensors on your Kia Sorento may vary slightly from the reference illustration due to ongoing engineering optimizations.

1. Front impact sensor

2. Supplemental Restraint System (SRS) control module/rollover sensor

3. Side pressure sensors (front door)

4. Side impact sensor (B-pillar)

5. Side impact sensor (C-pillar)

WARNING

Air bag sensors

• Do not strike, kick, or allow heavy objects to impact the sensitive areas of your Kia Sorento where airbags or internal electronic sensors are installed. Unintentional mechanical shock can trigger unexpected airbag deployment, leading to severe personal injury or fatal consequences.

• If the mounting location, bracket alignment, or physical angle of any collision sensor is altered in any way, the airbags may malfunction—deploying prematurely when unnecessary or failing to inflate during a critical crash. Never attempt DIY maintenance or repairs around airbag sensors. Always have the vehicle inspected and serviced exclusively by an authorized Kia dealership.

• Do not touch or tamper with the front impact sensors arbitrarily. Altering the calibrated angle of these precision components can cause the entire supplemental restraint system to malfunction during an accident.

Altering sensor installation angles as a result of body panel deformation, front bumper damage, front end module shifts, or front door impacts near side collision sensors can severely impair system reliability. Always have your Kia Sorento thoroughly inspected and professionally repaired by an authorized Kia technician after any collision.

Installing aftermarket bumper guards, tubular side steps, running boards, or replacing factory bumpers and front door modules with non-genuine components can negatively impact collision response metrics and compromise your Kia Sorento airbag deployment performance.

Certified Kia Genuine bumper guards and replacement bumpers are rigorously tested and guaranteed for optimal structural quality and safety performance.
