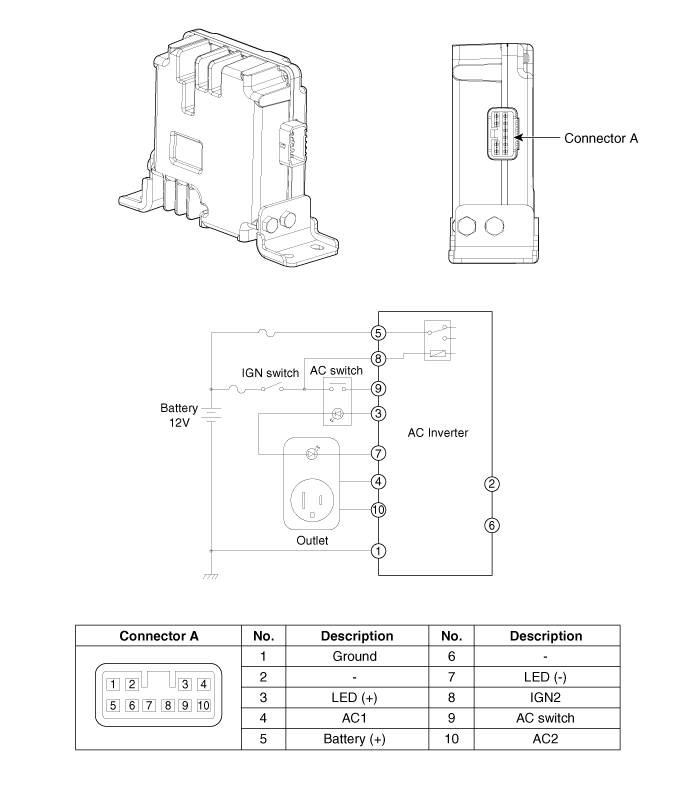

Kia Sorento: AC Inverter Unit Components - AC Inverter System - Body Electrical System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: AC Inverter Unit Components

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Body Electrical System / AC Inverter System / AC Inverter Unit Components

Description
An inverter is a device that transforms the DC voltage from the battery into an AC voltage (115 V). The inverter can power various electrical devices that consume 150 W or less, including mob ...

AC Inverter Unit Removal
1. Disconnect the negative (-) battery terminal. 2. Remove the right luggage side trim. (Refer to Body - "Luggage Side Trim") ...
