Kia Sorento: Troubleshooting - Starting System - Engine Electrical System - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Troubleshooting

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Engine Electrical System / Starting System / Troubleshooting

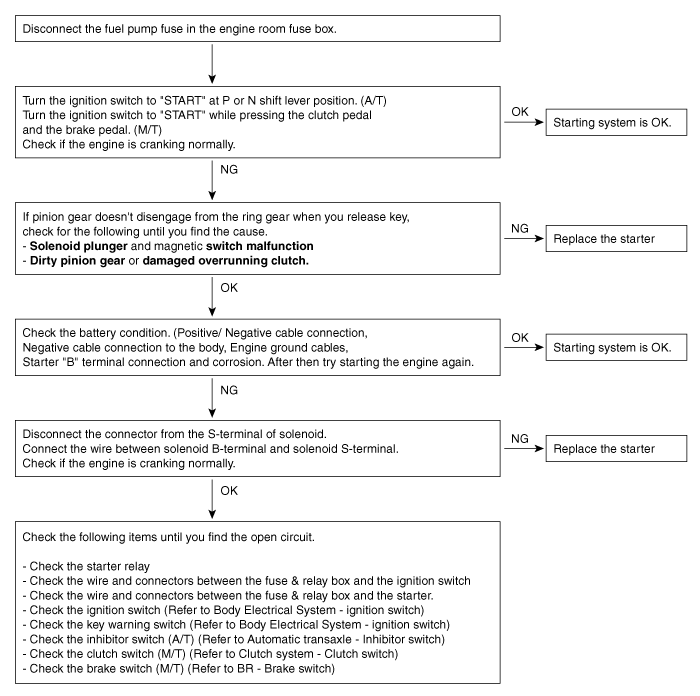

The battery must be in good condition and fully charged for this troubleshooting.

Description
The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connection wires and the battery ...

Starter Description
The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connection wires and the battery ...
