Kia Sorento: Troubleshooting
Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Body Electrical System / Power Windows / Troubleshooting
| 1. |

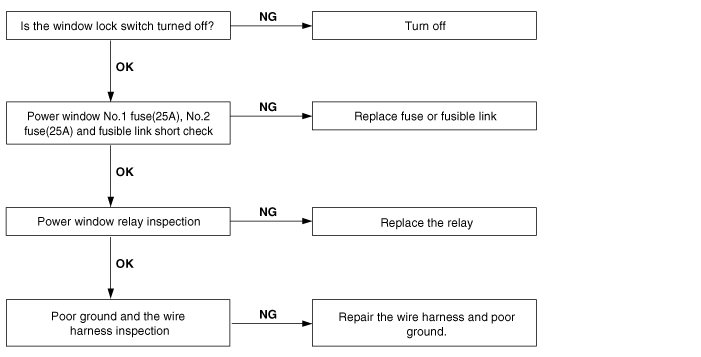

No windows operate from the main switch on the driver's door.
|
| 2. |

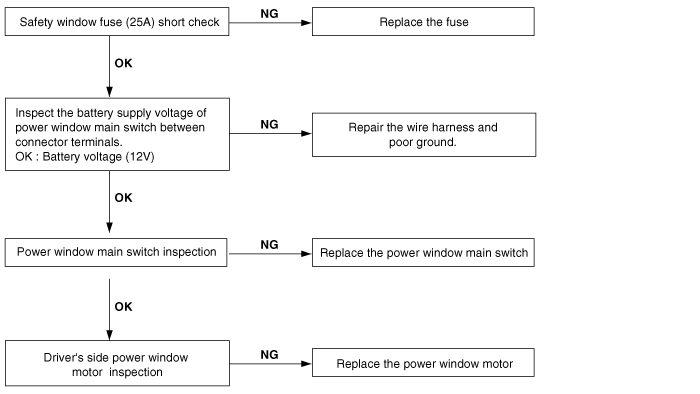

Driver's side window does not operate.
|
| 3. |

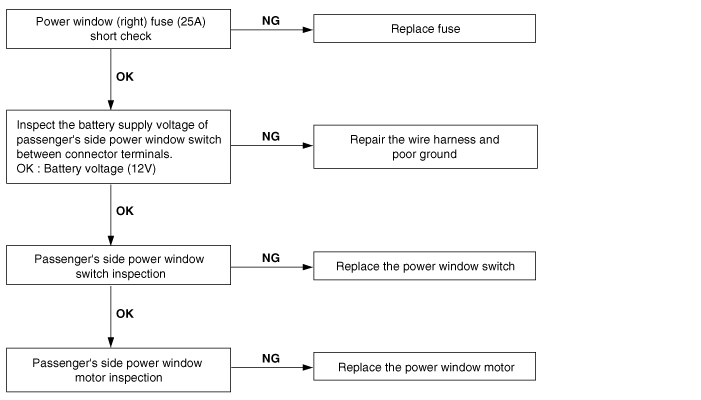

Passenger's side window does not operate.
|
Power Window Switch Inspection
Main Power Window Switch Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim and power window switch.
...
