Kia Sorento: SRSCM Connector terminal - SRSCM - Restraint - Kia Sorento XM 2011-2019 Service ManualKia Sorento: SRSCM Connector terminal

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Restraint / SRSCM / SRSCM Connector terminal

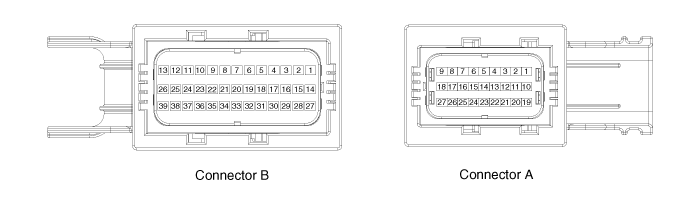

Pin
Function (Connector A)
Pin
Function (Connector B)
1
Ignition
1
Seat belt pretensioner [Driver] High
2
-
2
Seat belt pretensioner [Driver] Low
3
(1st stage) Driver airbag High
3
Seat belt pretensioner [Passenger] Low
4
(1st stage) Driver airbag Low
4
Seat belt pretensioner [Passenger] High
5
(1st stage) Passenger airbag Low
5
Curtain Airbag [Driver] High
6
(1st stage) Passenger airbag High
6
Curtain Airbag [Driver] Low
7
(2st stage) Driver airbag High
7
Emergency fastening device [Driver] Low
8
(2st stage) Driver airbag Low
8
Emergency fastening device [Driver] High
9
CAN_Low
9
Emergency fastening device [Passenger] High
10
Shorting bar
10
Emergency fastening device [Passenger] Low
11
Shorting bar
11
Side airbag [Driver] Low
12
(2st stage) Passenger airbag Low
12
Side airbag [Driver] High
13
(2st stage) Passenger airbag High
13
Ground
14
Front impact sensor [Passenger] High
14
Side airbag [Passenger] High
15
Front impact sensor [Passenger] Low
15
Side airbag [Passenger] Low
16
-
16
Curtain Airbag [Passenger] Low
17
Passenger airbag Active vent Low
17
Curtain Airbag [Passenger] High
18
CAN_High
18
-
19
Passenger Active vent _ High
19
-
20
Passenger Active vent _ Low
20
-
21
-
21
-
22
Crash Output
22
Pressure side impact sensor [Passenger] High
23
-
23
Pressure side impact sensor [Passenger] Low
24
Front impact sensor [Driver] High
24
C_CAN High (IMU LINE)
25
Front impact sensor [Driver] Low
25
C_CAN Low (IMU LINE)
26
-
26
Seat belt buckle switch [Passenger]
27
Telltale Lamp
27
-


28
-


29
Side impact sensor [Driver] High


30
Side impact sensor [Driver] Low


31
Side impact sensor [Passenger] High


32
Side impact sensor [Passenger] Low


33
-


34
-


35
Seat belt buckle switch [Driver]


36
-


37
-


38
Pressure side impact sensor [Driver] High


39
Pressure side impact sensor [Driver] Low
