If you have trouble code related to the oil hydraulic motor (actuator), check oil hydraulic motor (actuator) according to the inspection process.

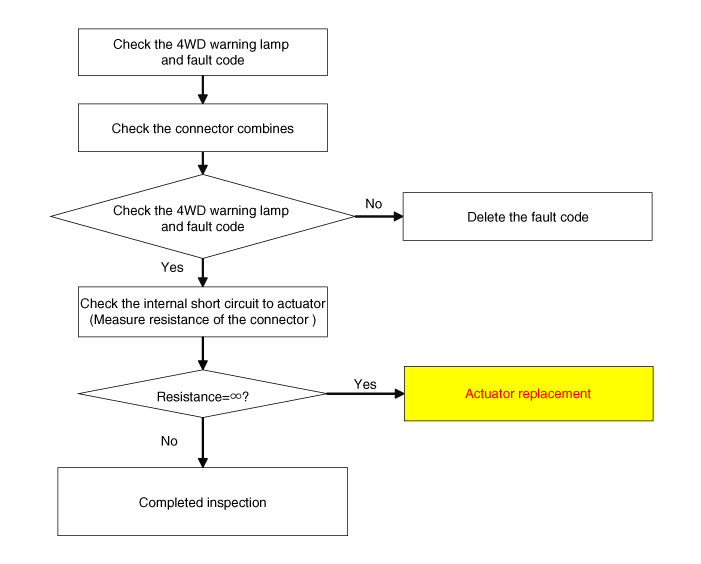

Oil Hydraulic Motor (Actuator) Inspection Procedure

Oil hydraulic Motor(Actuator) Circuit Diagram
...

Oil hydraulic Motor(Actuator) Removal
1. Remove the coupling assembly. (Refer to Coupling Assembly - "Direct Electro Hydraulic Actuator Coupling") 2. Keep goin ...
