CAUTION
Do not use the interior lights for extended periods when the engine is not running. It may cause battery discharge.
WARNING
Do not use the interior lights when driving in the dark. Accidents could happen because the view may be obscured by interior lights.
Automatic turn off function (if equipped)
The interior lights automatically turn off approximately 20 minutes after the ignition switch is turned off, if the lights are in the ON position.
If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system in armed stage.

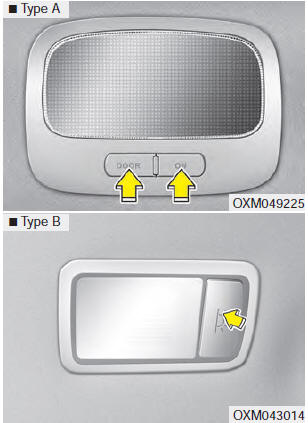

Room lamp
The light will turn on and off as below if the switch is pressed. The light will turn off if the button is pressed again.

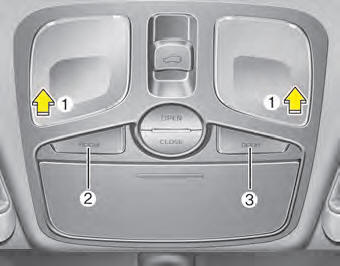

Map lamp
Press the lens (1) to turn the map lamp on or off
ROOM (2) :
- The map lamp and room lamp stays on at all times.
- To turn off the ROOM mode, press the ROOM button (2) once again (not pressed.)
DOOR (3) :
- The map lamp and room lamp comes on when a door is opened. The lamps go out after approximately 30 seconds.
- The map lamp and room lamp comes on for approximately 30 seconds when doors are unlocked with a transmitter or smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 minutes if a door is opened with the ignition switch in the ACC or LOCK/OFF position.
- The map lamp and room lamp will stay on continuously if the door is opened with the ignition switch in the ON position.
- The map lamp and room lamp will go out immediately if the ignition switch is changed to the ON position or all doors are locked.
- To turn off the DOOR mode, press the DOOR button (3) once again (not pressed).
✽ NOTICE

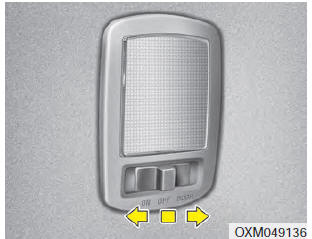

Luggage lamp (if equipped)

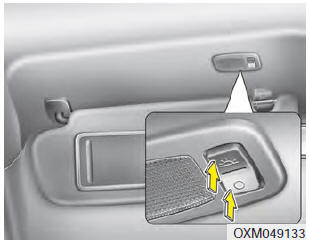

Vanity mirror lamp (if equipped)
✽ NOTICE
Turn off the lamp before returning the sun visor to its original position.
Evaporator Temperature Sensor Description
The evaporator temperature sensor will detect the evaporator core temperature
and interrupt compressor relay power in order to prevent evaporator from freezing
by excessive cooling
...
Telemetics Unit (TMU) Component
Connector Pin Specification
No.
Pin Name
Type
From
To
Description (Wiring Spec.)
1
GND
DC Ground
TMU
Battery
...
Storage compartments
These compartments can be used to store small items.
CAUTION
To avoid possible theft, do not leave valuables in the storage compartment.
Always keep the storage compartment covers closed while ...
