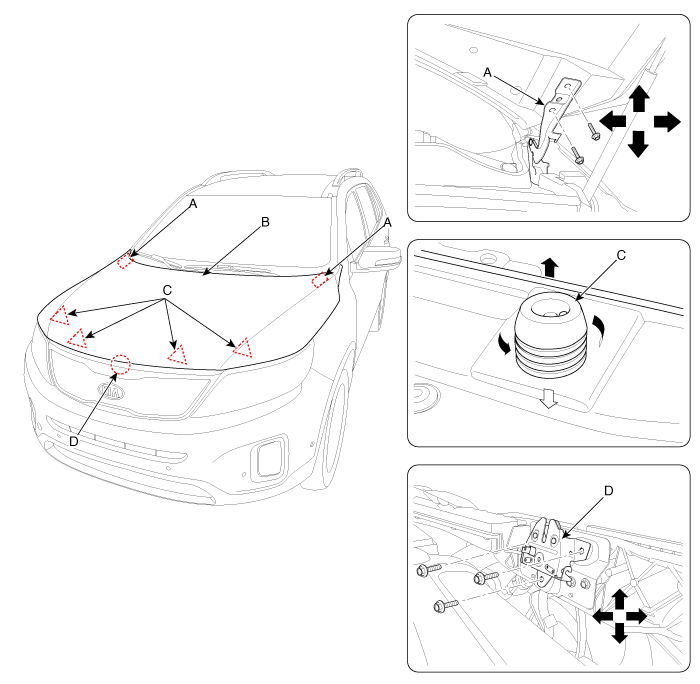

1. |
After loosening the hinge (A) mounting bolt, adjust the hood (B)
by moving it up or down, or right or left.
|
2. |
Adjust the hood height by turning the hood overslam bumpers (C).
|
3. |
After loosening the hood latch (D) mounting bolts, adjust the
latch by moving it up or down, or right or left.
|
