Kia Sorento: Heater Unit Components - Heater - Heating,Ventilation And Air Conditioning - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Heater Unit Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Heating,Ventilation And Air Conditioning / Heater / Heater Unit Components

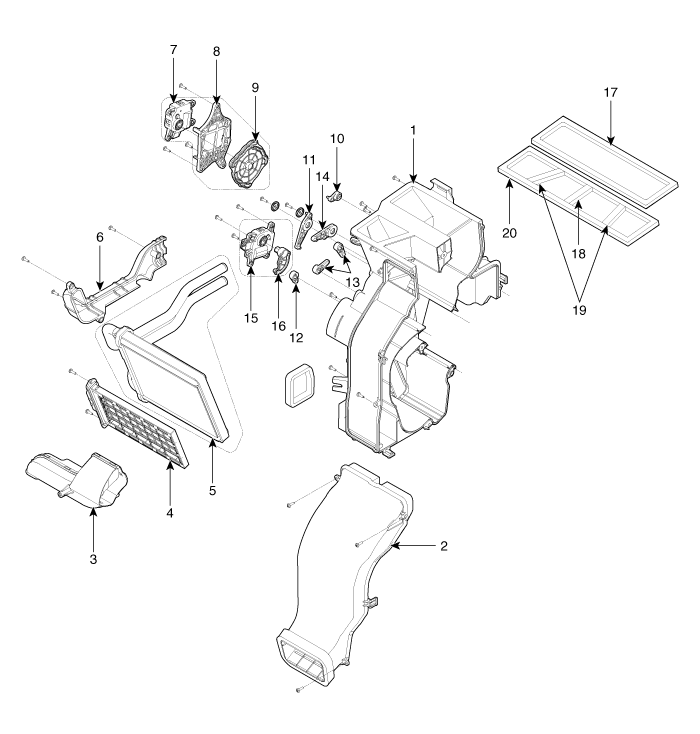

1. Heater Case
2. B Pillar Case
3. Shower Duct
4. PTC Heater
5. Heater Core
6. Heater Core Cover
7. Mode Actuator
8. Mode Bracket
9. Mode Lever Main
10. Def Door Lever
11. Foot Sub Lever
12. Temperature Door Lever
13. Vent/Foot Door Lever
14. Vent Sub Lever
15. Temperature Control Actuator
16. Temperature Door
17. Duct Seal (A)
18. Duct Seal (C)
19. Duct Seal (D)
20. Duct Seal (B)

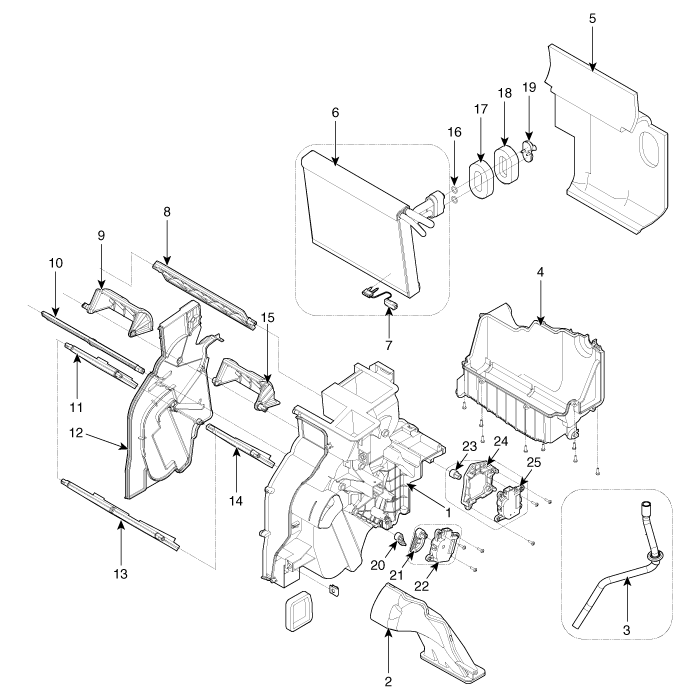

1. Heater Case
2. Shower Duct
3. Drain Hose
4. Lower Heater Case
5. NHV Pad
6. Evaporator Core
7. Evaporator Temperature Sensor
8. Def Door
9. Vent Door (LH)
10. Foot Door
11. Temperature Door (LH)
12. Blind Case
13. Temperature Door (Main)
14. Temperature Door (RH)
15. Vent Door (RH)
16. O-Ring
17. Flange Seal
18. Flange Seal
19. Flange Cap
20. Temperature Control Actuator Lever
21. Temperature Lever (RH)
22. Temperature Control Actuator
23. Def Lever
24. Def Bracket
25. Auto Defogging Actuator

Heater Unit Component Location
...

Heater Unit Replacement
1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/recycling/charging station. 3. ...
