Kia Sorento: Head Lamps Component (2) - Lighting System - Body Electrical System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Head Lamps Component (2)

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Body Electrical System / Lighting System / Head Lamps Component (2)

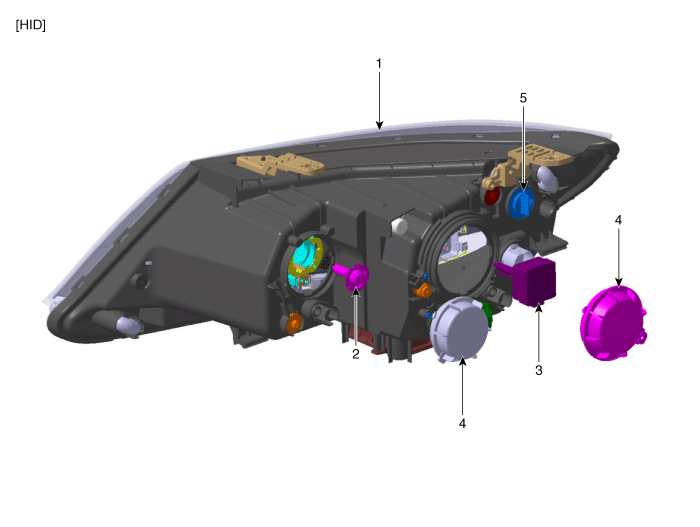

1. Head lamp assembly
2. Head lamp high beam bulb
3. Head lamp low beam bulb (HID & ignitor)
4. Dust cap
5. Turn signal lamp socket & bulb
