Kia Sorento: Front Wiper Motor Component Location - Windshield Wiper/Washer - Body Electrical System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Front Wiper Motor Component Location

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor Component Location

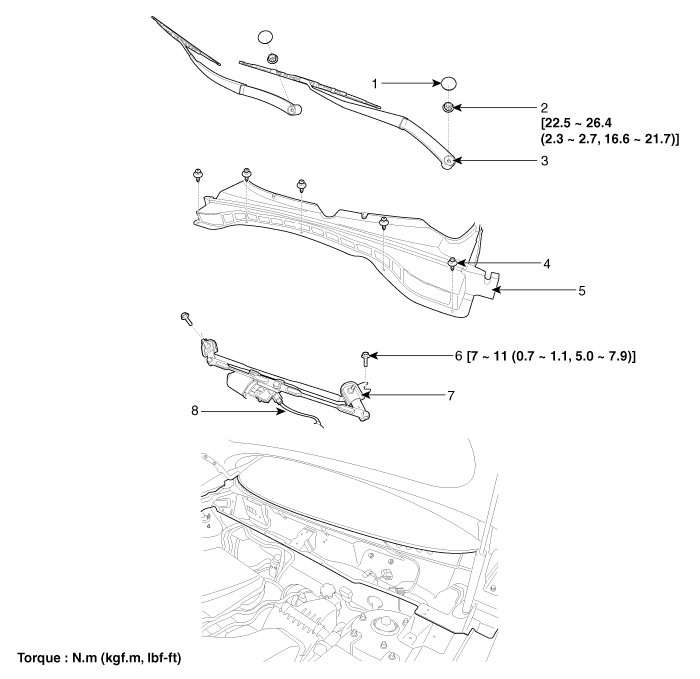

1. Cap
2. Nut
3. Wiper arm & blade
4. Retainer
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector
