Kia Sorento: Front Strut Assembly Components - Front Suspension System - Suspension System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Front Strut Assembly Components

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Suspension System / Front Suspension System / Front Strut Assembly Components

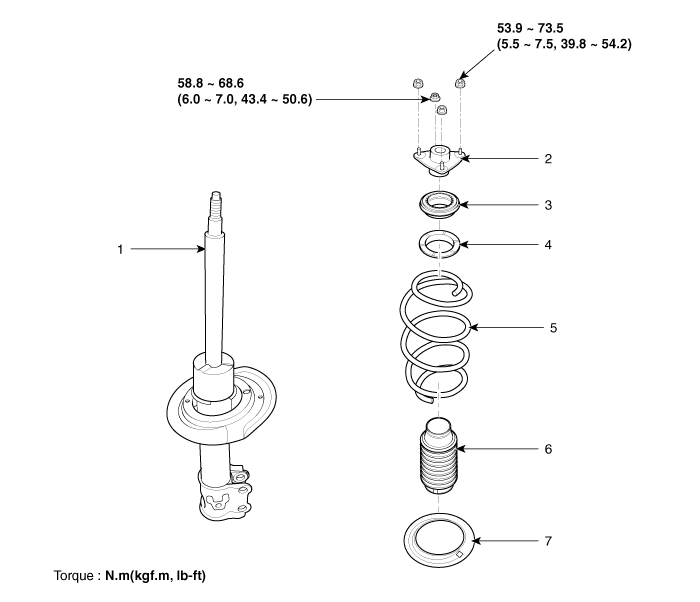

1. Strut assembly
2. Insulator
3. Bearing
4. Spring upper pad
5. Spring
6. Dust cover
7. Spring lower pad

Components Location
1. Front axle 2. Front lower arm 3. Drive shaft 4. Sub frame 5. Stabilizer bar 6. Steering gearbox 7. Stabilizer link 8. Front strut assembly ...

Front Strut Assembly Removel
1. Remove the front wheel and tire (A) from front hub . Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
