Kia Sorento: Front Hub / Knuckle / Tone Wheel Components - Front Axle Assembly - Driveshaft and axle - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Front Hub / Knuckle / Tone Wheel Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub / Knuckle / Tone Wheel Components

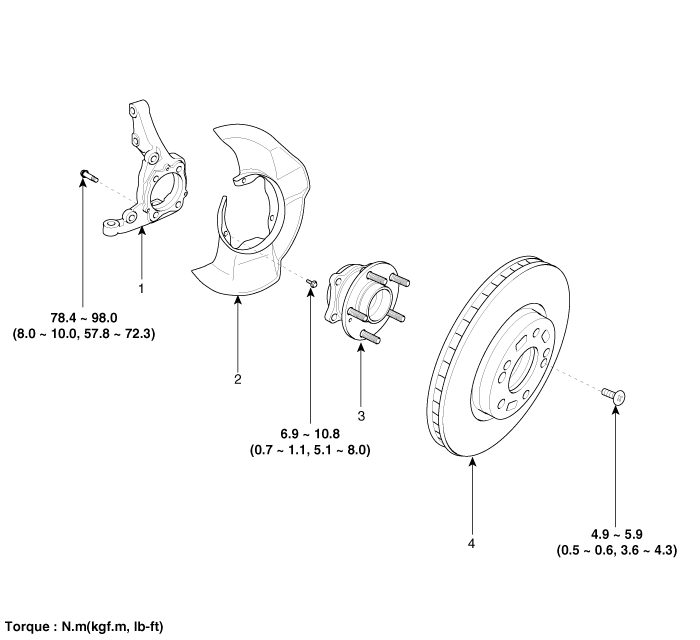

1. Knuckle
2. Dust cover
3. Hub assembly
4. Brake disc

Front Axle Assembly
...

Front Hub / Knuckle / Tone Wheel Removal and Installation
1. Remove the front wheel and tire (A) from front hub . Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
