Kia Sorento: External Amplifier Components
Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Body Electrical System / AVN System / External Amplifier Components

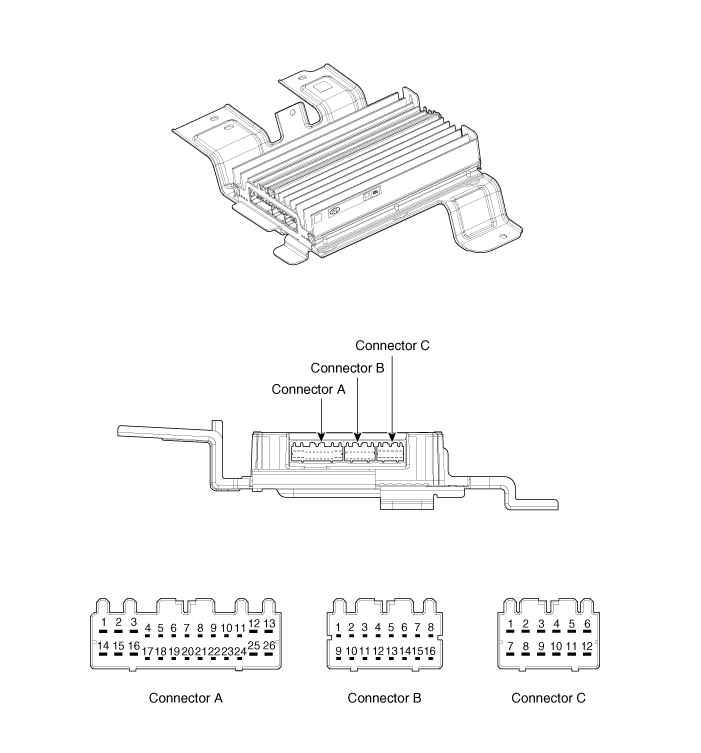

Connector Pin Information
| No. |
Connector A (26 pin) |
Connector B (16 pin) |
Connector C (12 pin) |
| 1 |
Battery + |
Right surround speaker + |
Rear right door + |
| 2 |
Battery + |
Left surround speaker + |
Rear left door speaker + |
| 3 |
Battery + |
- |
Front right tweeter speaker + |
| 4 |
- |
- |
Front left tweeter speaker + |
| 5 |
CAN + |
- |
Front right door speaker + |
| 6 |
CAN - |
- |
Front left door speaker + |
| 7 |
ACC |
Front center speaker + |
Rear right door speaker - |
| 8 |
IGN 1 |
- |
Rear left door speaker - |
| 9 |
- |
Right surround speaker - |
Front right tweeter speaker - |
| 10 |
- |
Left surround speaker - |
Front left tweeter speaker - |
| 11 |
Navigation voice + |
- |
Front right door speaker - |
| 12 |
Subwoofer 2 + |
- |
Front left door speaker - |
| 13 |
Subwoofer 1 + |
- |
|
| 14 |
Ground |
- |
|
| 15 |
Ground |
Front center speaker - |
|
| 16 |
Ground |
- |
|
| 17 |
- |
|
|
| 18 |
SPDIF + |
||
| 19 |
SPDIF - |
||
| 20 |
SPDIF ground |
||
| 21 |
- |
||
| 22 |
- |
||
| 23 |
- |
||
| 24 |
Navigation voice - |
||
| 25 |
Subwoofer 2 - |
||
| 26 |
Subwoofer 1 - |
Multimedia Jack Installation
1.
Install the Multimedia jack.
2.
Install the console upper cover.
...
External Amplifier Removal
External Amplifier
1.
Remove the passenger seat assembly.
(Refer to Body - "Front Seat Assembly")
2.
Remove the external a ...
