Kia Sorento: Driver Airbag (DAB) Module and Clock Spring Components - Airbag Module - Restraint - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Driver Airbag (DAB) Module and Clock Spring Components

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components

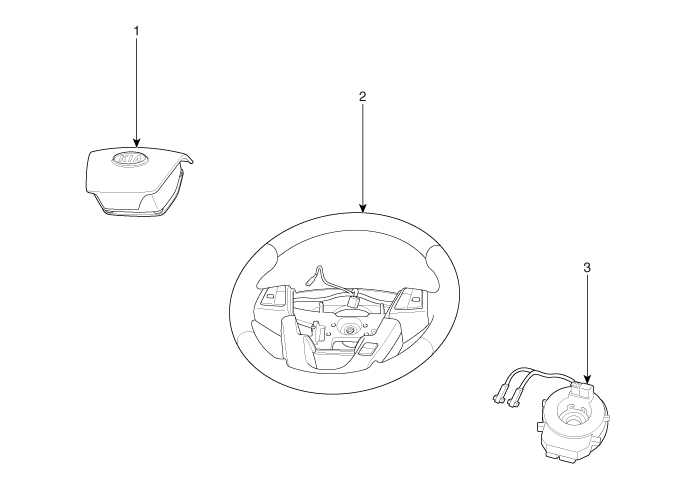

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring

Driver Airbag (DAB) Module and Clock Spring Description
Driver Airbag (DAB) is installed the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash occurs. The SRS ...

Driver Airbag (DAB) Module and Clock Spring Removal
1. Set the front tires straight-ahead before removing the steering wheel.    ...
