WARNING - Hot liquids
WARNING
Keep cans or bottles out of direct sun light and do not put them in a vehicle that is heated up. It may explode.

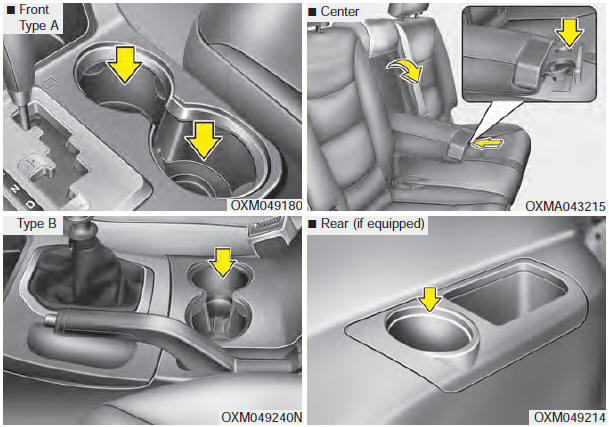

Cups or small beverage cans may be placed in the cup holders.
Bottle holder
Bottles may be placed in the holder.
✽ NOTICE
Only bottles should be place in the holder as it is written in the vehicle “BOTTLE ONLY”.
Sunvisor
Use the sunvisor to shield direct light through the front or side windows. To use the sunvisor, pull it downward.

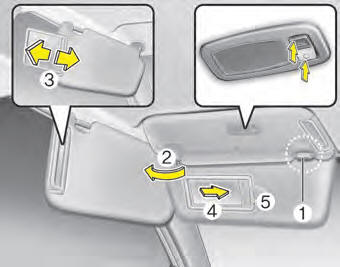

To use the sunvisor for the side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
Adjust the sunvisor extension forward or backward (3).
To use the vanity mirror, pull down the visor and slide the mirror cover (4).
The ticket holder (5) is provided for holding a tollgate ticket. (if equipped)
The actual sunvisor lamp in the vehicle may differ from the illustration.
CAUTION - Vanity mirror lamp
If you use the vanity mirror lamp, turn off the lamp before returning the sunvisor to its original position, otherwise it could result in battery discharge and possible sunvisor damage.
WARNING
For your safety, do not obstruct your vision when using the sunvisor
