Kia Sorento: Compressor Components - Air conditioning System - Heating,Ventilation And Air Conditioning - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Compressor Components

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Heating,Ventilation And Air Conditioning / Air conditioning System / Compressor Components

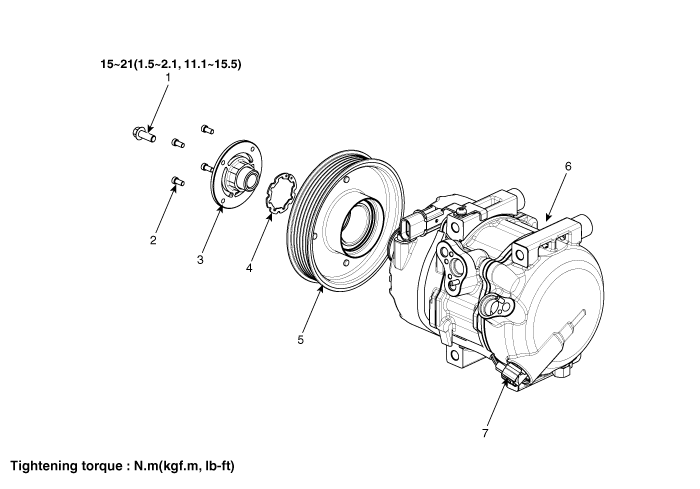

1. Center Bolt
2. Hub Bolt
3. Hub Assembly
4. Snap Ring
5. Pulley
6. Compressor Assembly
7. Electric Control Valve

Compressor Description
The compressor is the power unit of the A/C system. It is located on the side of engine block and driven by a V-belt of the engine. The compressor changes low pressure and low temperatur ...

Compressor Removal
1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off. ...
