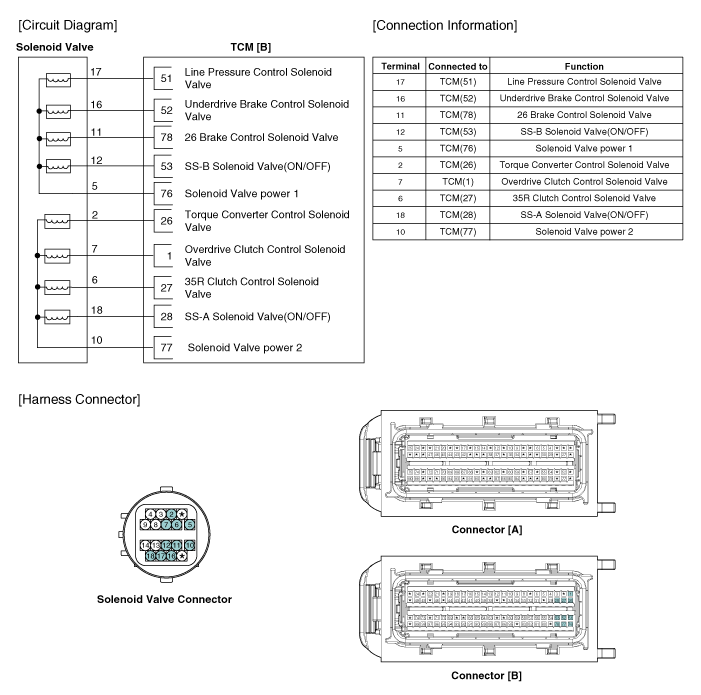

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Overdrive Clutch Control Solenoid Valve(OD/C_VFS) / Circuit Diagram

Specifications
Direct control VFS[OD/C] ▷ Control type : Normal high type Control Pressure kpa (kgf/cm², psi) 539.370 ~ 0 ( 5.5 ~ 0, 78.23 ~ 0) Current value(mA) ...

Inspection
1. Turn ignition switch OFF. 2. Remove the air duct. (Refer to Engine Mechanical System - "Air cleaner") ...
