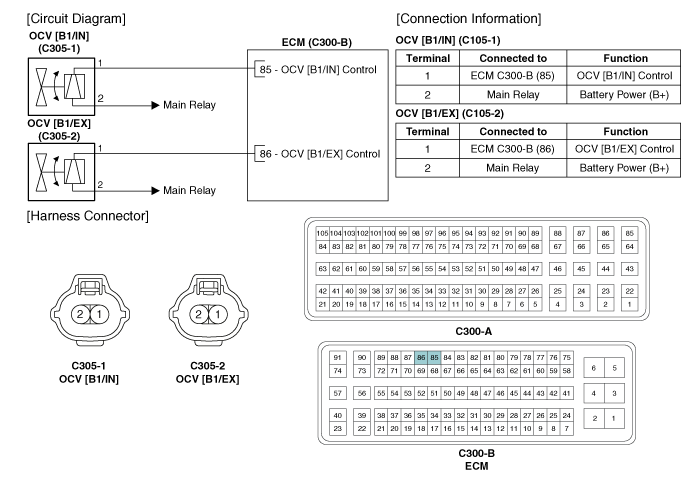

Kia Sorento: Circuit Diagram - CVVT Oil Control Valve (OCV) - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Control / Fuel System / Engine Control System / CVVT Oil Control Valve (OCV) / Circuit Diagram

Specification
Item Specification Coil Resistance (Ω) 6.9 ~ 7.9 [20°C(68°F)] ...

Inspection
1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV termina ...
