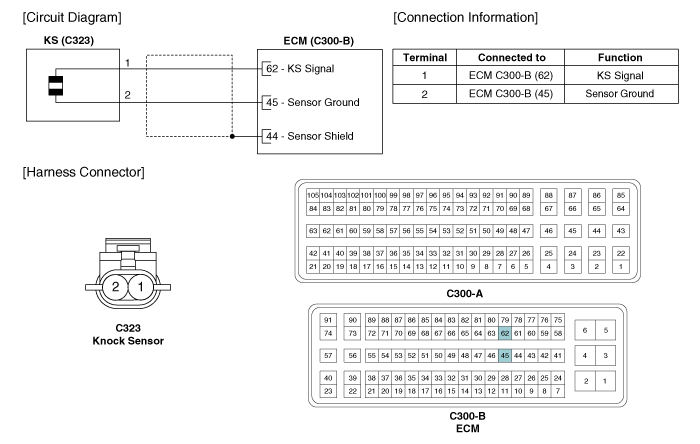

Kia Sorento: Circuit Diagram - Knock Sensor (KS) - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Knock Sensor (KS) / Circuit Diagram

Specification
Item Specification Capacitance (pF) 850 ~ 1,150 ...

Removal
1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold. (Refer to Engine Mech ...
