Kia Sorento: Blind Spot Detection Unit Inspection - Blind Spot Detection System - Body Electrical System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Blind Spot Detection Unit Inspection

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Body Electrical System / Blind Spot Detection System / Blind Spot Detection Unit Inspection

BSD Unit Alignment

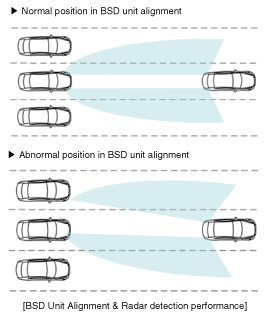

To sense the cars exactly in the next lane with the radar, the direction of the sensor and the direction of the vehicle have to align.
This is BSD unit alignment. If this alignment is not performed as below illustration, the degradation of detection performance and the cause of false alarms.
The rear bumper accident vehicle and after replacing the BSD unit vehicle have to do this align especially.

1.
The rear bumper accident vehicle and after replacing the BSD unit vehicle have to do BSD unit alignment using GDS.
2.

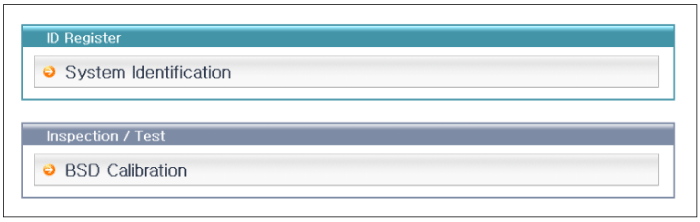

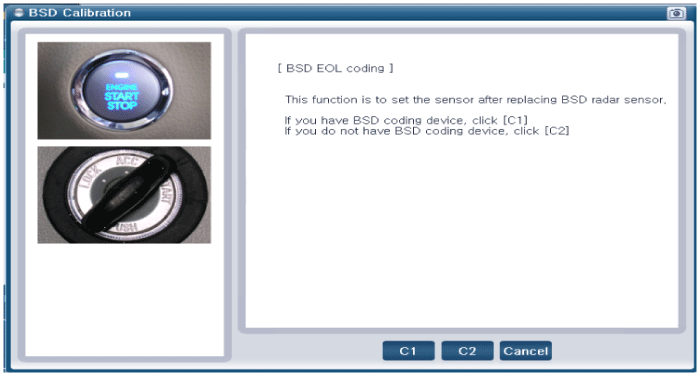

Select the "BSD EOL coding" procedure.

3.

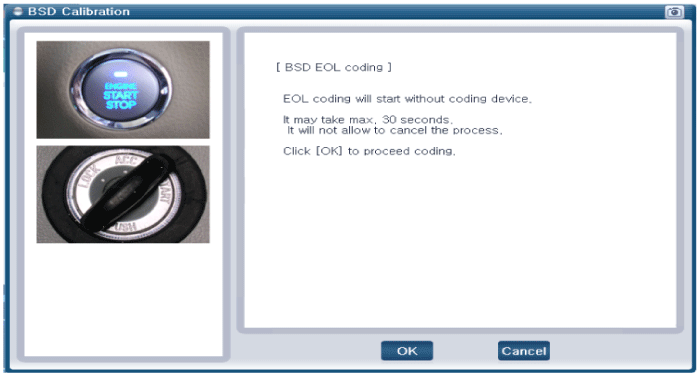

Complete the alignment procedure according to GDS screen message.

Blind Spot Detection Unit Installation
1. Install the BSD units to the rear bumper. 2. Install the rear bumper. 3. Connect the negative (-) battery te ...
