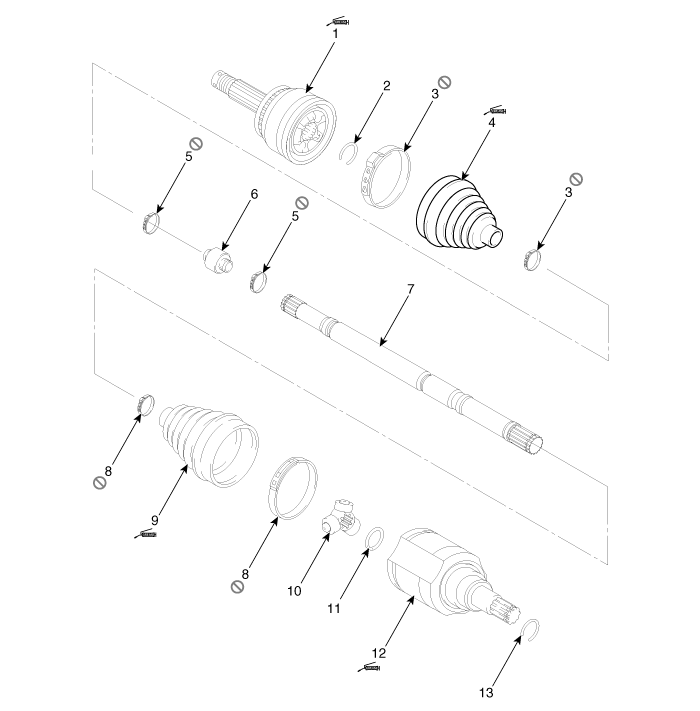

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ housing
13. Housing circlip

Dynamic Damper Installation
1. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper. 2. Install the dynamic damper. ...

BJ Boot Removal and Installation
1. Remove the front driveshaft. (Refer to Driveshaft Assembly - Front Driveshaft) 2. Remove the TJ joint assembly. (Refer to ...
