Kia Sorento: Battery Components - Charging System - Engine Electrical System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Battery Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Electrical System / Charging System / Battery Components

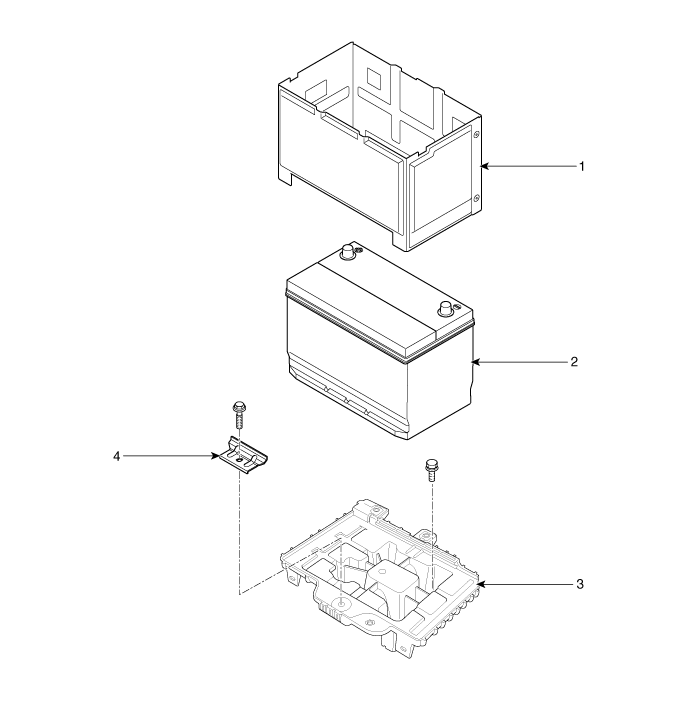

1. Battery insulation pad
2. Battery

3. Battery tray
4. Battery mounting bracket

Battery Specification
Item Specification Model type CMF68L-BCI Capacity [20HR/5HR] (AH) 68 / 54 Cold Cranking Amperage (A) 600 (SAE) / 480 (EN) ...

Battery Removal
1. Disconnect the battery (-) terminal and (+) terminal (A). 2. Remove the battery mounting bracket (B) and the insulation pad and then rem ...
