Kia Sorento: 4WD ECU Circuit Diagram - 4WD Control System - 4 Wheel Drive (4WD) System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: 4WD ECU Circuit Diagram

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / 4 Wheel Drive (4WD) System / 4WD Control System / 4WD ECU Circuit Diagram

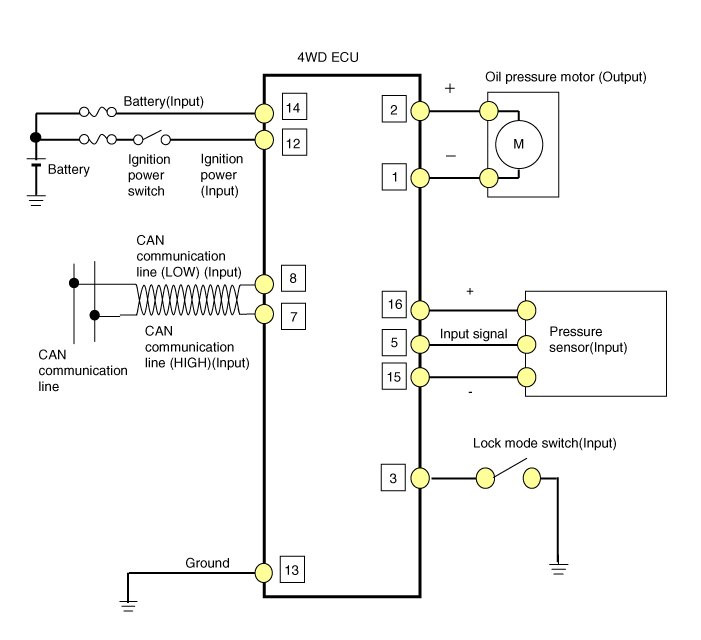

4WD ECU Circuit Diagram and Connector
4WD ECU Connector Pin Function 1 MOTOR A 2 MOTOR B 3 LOCK MODE SWITCH (Input) 4 - ...

4WD ECU Removal
1. Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learing with the GDS tool. (Refer to 4WD Control System - "Repair procedures") ...
